Model: 90MB15J0-M0EAY0

SKU Code: 0030386

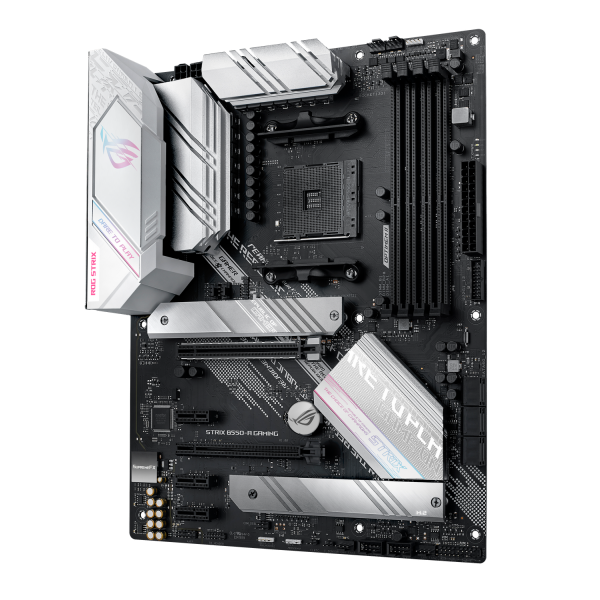

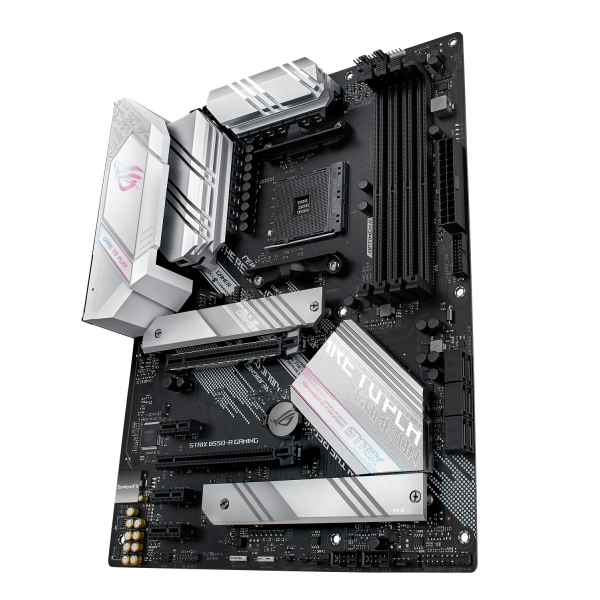

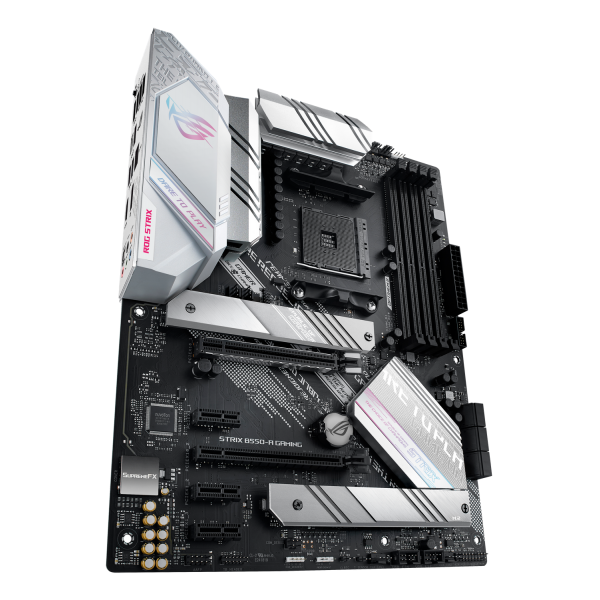

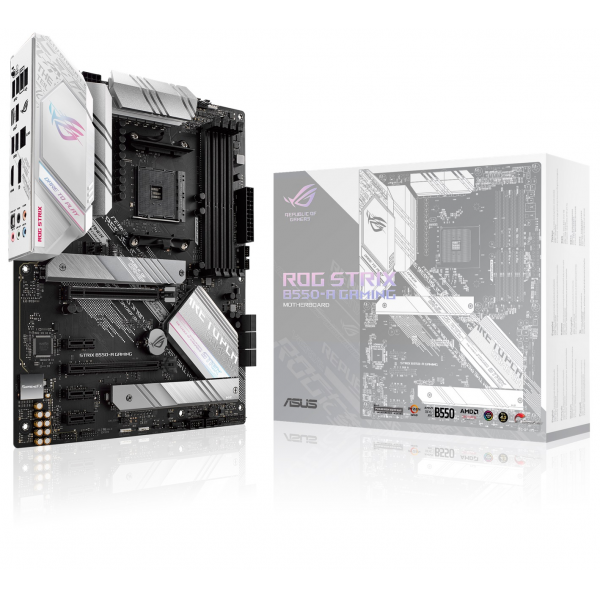

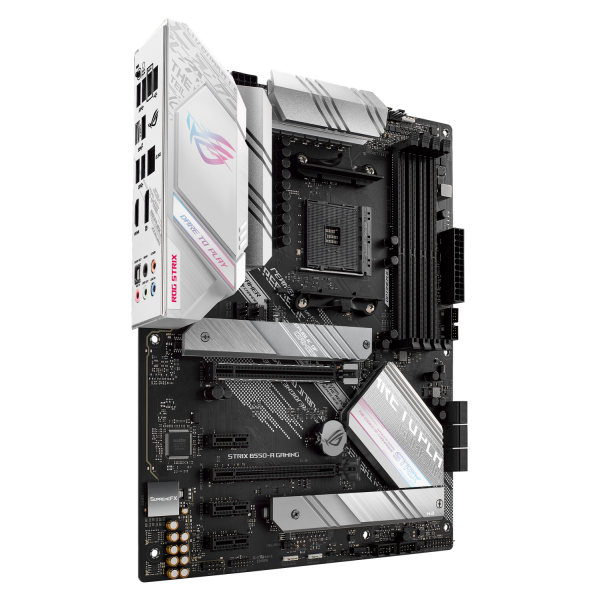

ASUS ROG Strix AMD B550-A Gaming Motherboard

Built for Performance Gaming.

In stock

In Stock - Birkirkara & Zejtun

Quantity



€185.00

Offers available in Stores only

€166.50

Description

PCIe 4.0-Ready
ROG Strix B550-A Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

Next-Gen Connectivity
Onboard 2.5Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

AI Noise-Canceling Microphone
AI noise-canceling microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

Power Delivery Enhancements
Digital power control and an array of power stages ensure ROG Strix B550-A Gaming has the muscle to control the latest AMD CPUs

Protocol Power Connector
The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

Teamed Power Stages
12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

Alloy Choke & Capacitor
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

6-Layer PCB
The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

Cooler by Design
ROG Strix B550 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

AI Networking
GameFirst VI analyzes current app usage and adjusts bandwidth accordingly to ensure smoother online experiences, even when multitasking.

Undeniably ROG Strix
Finished in stunning white and silver, and featuring the redesigned ROG logo and recessed cybertext markings on its I/O shroud, ROG Strix B550-A Gaming is an eye-catcher. These new design touches move ROG Strix boldly towards the future, while clearly reflecting its gaming roots.

Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio Link
The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual Mixer
A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

Pre-mounted I/O shield
ROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

Q-LEDs
Onboard LEDs to indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.

BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.

Specifications

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

AMD B550

Memory

AMD Ryzen 4000 G-Series Processors

  • 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Onboard Graphics

  • 1 x HDMI 2.1(4K@60HZ)
  • 1 x DisplayPort  1.2

Integrated Graphics Processor

* Actual support may vary by CPU.

Audio

Audio Shielding

Premium Japanese audio capacitors

Audio Cover

Optical S/PDIF in port(s) at back panel

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

  • Dual OP Amplifiers
  • Impedance sense for front and rear headphone outputs
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality120dBSNR stereo playback outputand113dBSNR recording input
  • Supports up to 32-Bit/192kHz playback *

Audio Feature :

  • SupremeFX Shielding™ Technology
  • Gold-plated jacks

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Network

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD B550 Chipset

  • 1 x PCIe 3.0 x16 (x4 mode) *
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x16 mode)
  • 1 x PCIe 3.0 x16 (x16 mode)

Storage Interface

AMD RyzenTM 4000 G-Series Processor / AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
  • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

  • Support Raid 0, 1, 10
  • 6 x SATA 6Gb/s port(s)

Multi-Graphics Technology

Supports AMD 2-Way CrossFireX Technology

USB

Front USB Port ( Total 6 )

Rear USB Port ( Total 8 )

  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
  • 2 x USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 port(s)
  • 4 x USB 2.0 port(s)

Internal I/O Connectors

1 x AAFP connector

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x Thunderbolt header(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

Back Panel Connectors

1 x BIOS FlashBack™ Button(s)

2 x USB 3.2 Gen 2  (1 x Type-A+1 x USB Type-C®)

1 x Intel® I225-V 2.5Gb Ethernet

4 x USB 3.2 Gen 1

1 x DisplayPort

1 x HDMI

2 x USB 2.0

1 x Optical S/PDIF out

5 x Gold-plated audio jacks

Form Factor

ATX Form Factor; 30.5 cm x 24.4 cm
