Model: BHR5596GL

SKU Code: 0032178

Xiaomi Smart Laser Measure (Up to 40m)

Easy measurement anytime and anywhere.

Quantity



€41.90

€49.90

In stock

Limited Stock Available

Current Price: €41.90

GO Freedom Plus Plan Price: €37.71

Click here to learn more

Description

Real time ranging to measure wherever you want
After a brief press to emit the laser, the length can be read in real time. The measure adoptes a precise and stable Class II laser, which reaches the distance as close as 5cm and as far as 40m. Measure anything anytime.

Dual-emission with single receiver
Millimetre-level measurement precision
Equipped with a dual-emission single-receiving laser head. The complex procedures of Laser emission > Calibration > Data Display can be completed instantly. Data precision drops within ±3mm.

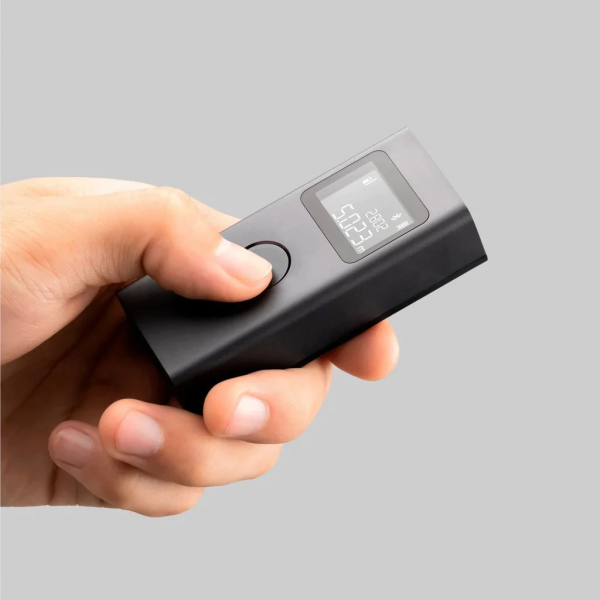

Quick measurement with one hand in different scenarios
From large areas like a new home or a warehouse, to the door and window sizes, you can tap to see the results on the measure immediately.

Expand the functions via the Mi Home/Xiaomi Home app
By connecting a smartphone via Bluetooth, you can link the laser measure with Mi Home/Xiaomi Home app to realise more functions such as data synchronisation/remarks, length/area/volume calculation, floor plan mapping, map sharing, and effect viewing.

Floor plan with real-time mapping and surveying
You can draw the floor plan directly in Mi Home/Xiaomi Home app or draw and measure with photos. The measured data will be automatically marked to the selected line, and the app will intelligently adjust the line based on the data marked.

Remote control measurement with your smartphone
Your smartphone can be used as "a remote control for measuring distance" to remotely control the measure. It does a great help when the measure must be placed at a fixed point or cannot be meaure the super smooth plane, a narrow gap and or the vertical distance.

Easy calculation of area/volume/length
You can flexibly select existing length, width, and height data for the area and volume calculation, or simply add or subtract to calculate the length. Multidimensional scales are at hand.

Single button design
Easy to operate with one button only
It only has one control button. Long press 2 seconds to start, short press to measure, and double tap to switch the front and back benchmarks. The single-button design makes it easy for you.
  • Long press 2 seconds to turn on/off
  • Short press to start/end recording measurement data
  • Double tap to switch the front and back benchmarks

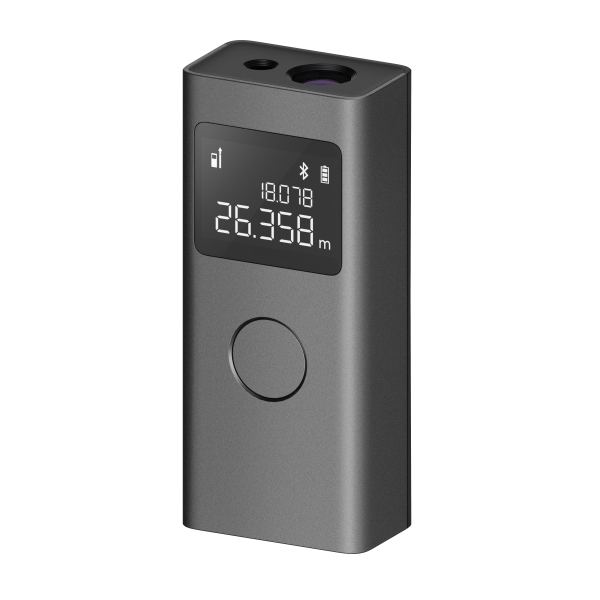

High brightness LCD display
Clear and easy
With the high brightness LCD display, the current measurement data, historical measurement data, measurement benchmark, measurement unit, battery status, and Bluetooth connection status are clear at a glance.

Dual matte finish
Wear and scratch resistance
Lightweight aluminium alloy with high-strength engineering plastics create a delicate matte appearance. Delicate matte texture surface with comfortable touch

Wireless lithium battery
Type-C port for easy charging
Long-lasting battery life
370mAh high-capacity lithium battery for measuring 3000 sets of data at full charge. Type-C charging port can share charger cable with other electronic devices like smartphone.

Note: The Mi Home/Xiaomi Home app connected to the measure should be version 6.9.200 or higher. If the version is outdated, please upgrade it before use.

Specifications

Technical Specifications
Measurement range: 0.05–40m
Measurement precision: ±(3mm + 5 x 10-5 D)
Minimum display unit: 0.001m
Measurement unit: m
Laser type: The wavelength is 630–680nm
Lithium-ion battery: 3.7V⎓370mAh
Display: 1.23-inch LCD screen
Bluetooth transmission distance: About 8m (without obstacles)
Standard implemented: GB 4793.1-2007, GB 7247.1-2012
Product dimensions: 80 x 35 x 21mm
Product net weight: About 60g
Charging parameters: 5V⎓1A
Operating power: 0.7W (MAX.)
Charging time: About 100min
Automatic turn off time: 180s
Automatic turn off laser time: 180s
Operating temperature: -10°C–50°C
Storage temperature: -20°C–60°C
Storage humidity: 20%–80%RH
CMIT ID: 2021DP6853

Warranty and Returns Policy
