Model: 7E51-001R

SKU Code: 0035676

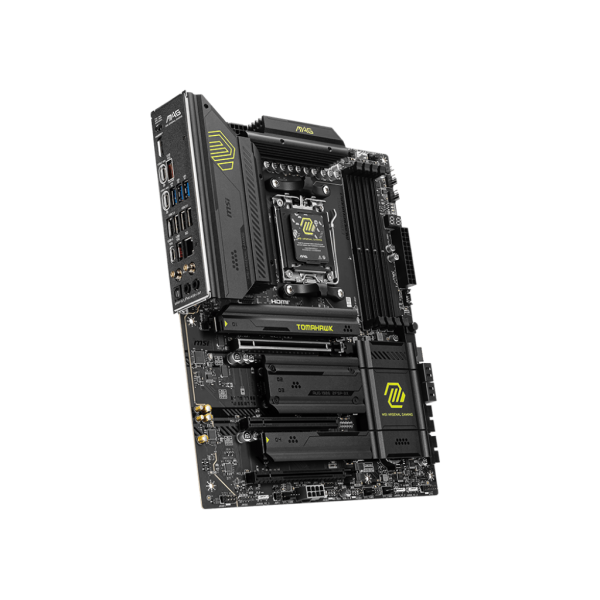

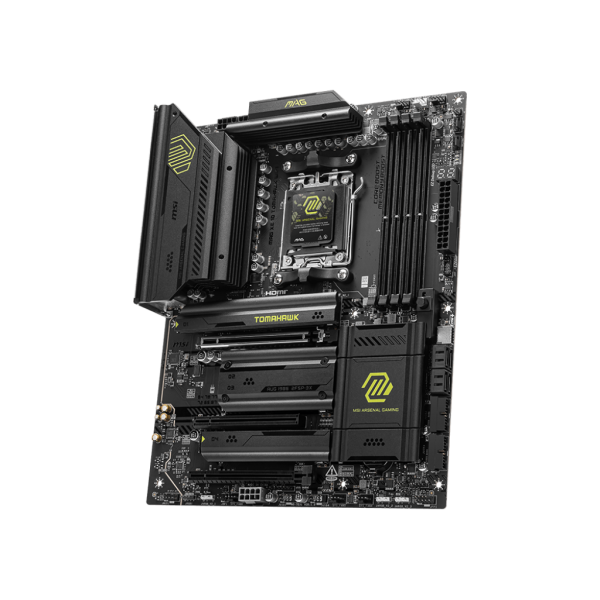

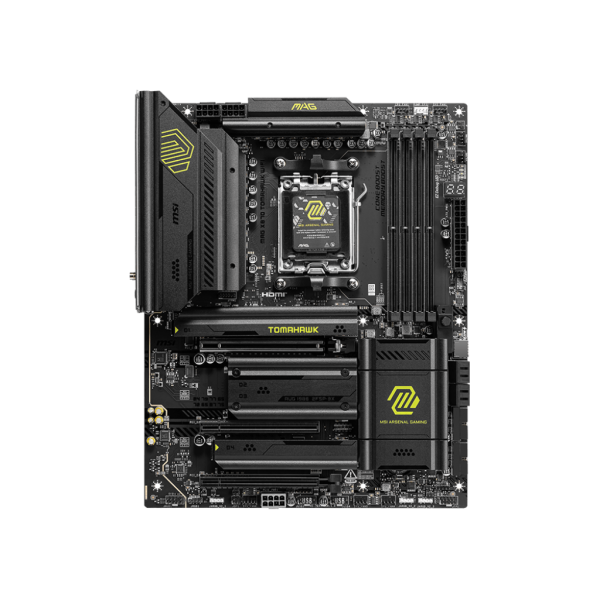

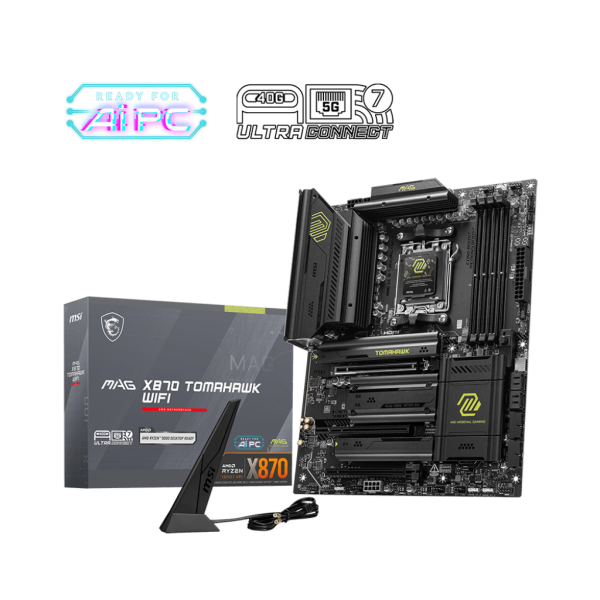

MSI X870 Tomahawk WIFI DDR5 AM5 ATX Motherboard

MAG X870 Tomahawk Wi-Fi is designed for gamers with a stable,durable and DIY friendly foundation for their PC builds.

€379.00

Currently Not Available

Current Price: €379.00

GO Freedom Plus Plan Price: €341.10

Click here to learn more

Description

Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+2+1 DRPS Power Design
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870 TOMAHAWK WIFI is ready for the challenge of high-end processors.

Optimized PCB Solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 Memory support with high performance
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X870 TOMAHAWK WIFI is ready to deliver the world-class memory performance.

Transient Voltage Suppressors
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Double-sided M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

DIY 2.0- Integrating with the system environment
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Cooling Wizard
Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Frozr AI Cooling
Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.

Auto Detect Fan
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Wi-Fi 7 Connection
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
*Windows 11 compatibility only

AI Lan Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
  • Automatically prioritizes games above other applications
  • Allows to change applications' traffic priority
  • Allows to customize bandwidth for each application
  • Analysis Wi-Fi signals to select the best source.
Build for the most advanced pc for ganming and creating.
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD X870

Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

Onboard Graphics

1x HDMI™ (Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*)

2x Type-C DisplayPort

USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-bit/384kHz playback on front panel

Supports S/PDIF output

LAN

Realtek® 8126-CG 5G LAN

Expansion Slots

3 x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

1 x PCI-E x1 slot

  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Storage Interface

4x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

Internal I/O Connectors

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

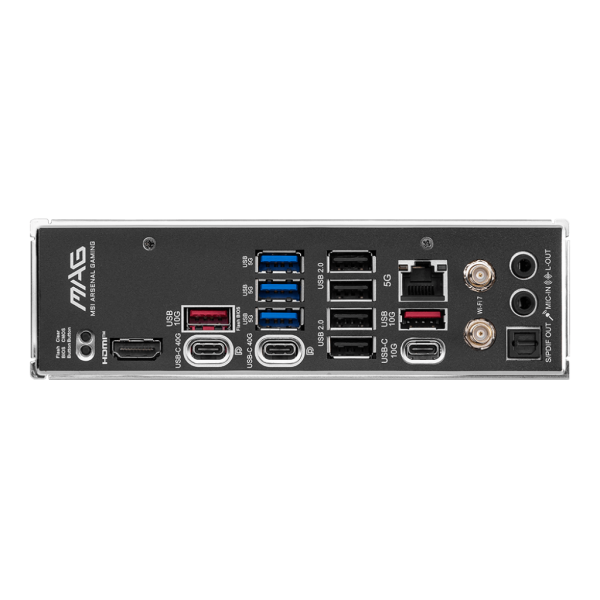

Back Panel Ports

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

USB 40Gbps Type-C

USB 10Gbps Type-C

USB 10Gbps Type-A

Form Factor

ATX
304.8mmx243.84mm
