Model: CPE510

SKU Code: 0020084

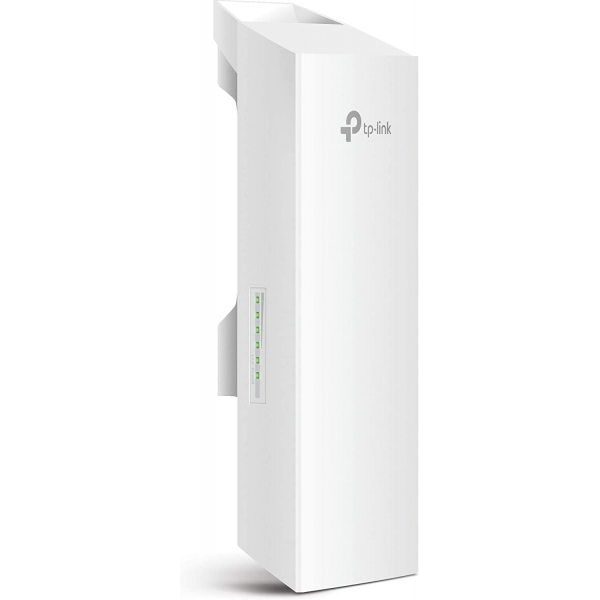

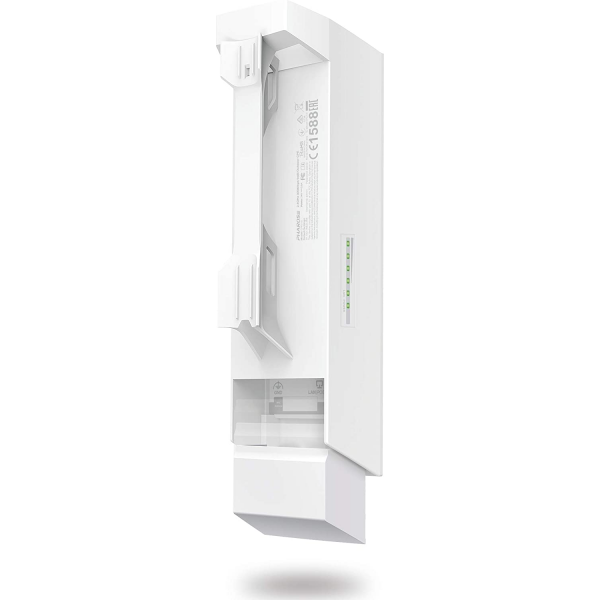

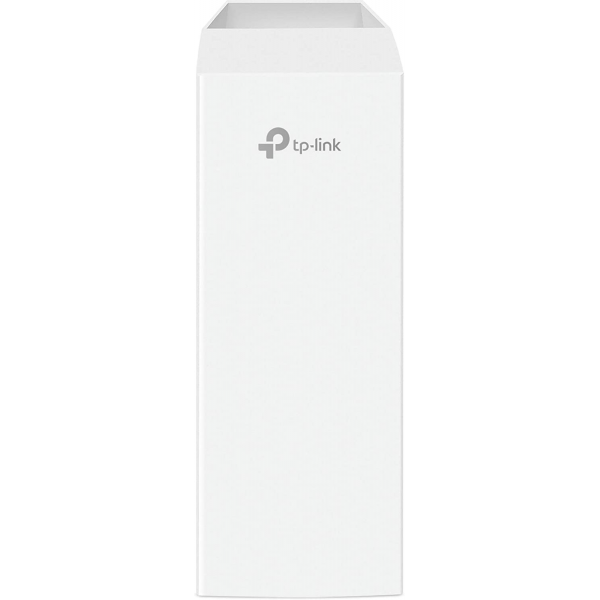

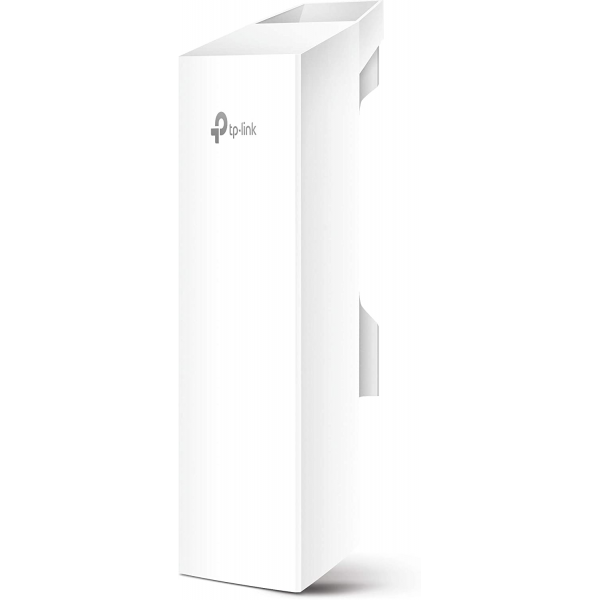

TP-Link Pharos CPE510 300Mbps 5GHz 13dBi Wireless Outdoor Access Point

The CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications.

Quantity



€75.00

In stock

In Stock - Birkirkara & Zejtun

Description

Overview
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.

Features
  • Built-in 13dBi Dual-polarized Directional Antenna
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • 6KV Lightning Protection
  • Weather Proof Enclosure
  • 15KV ESD Protection
  • Passive PoE Adapter

Specifications

Hardware Features
Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM, 8MB Flash

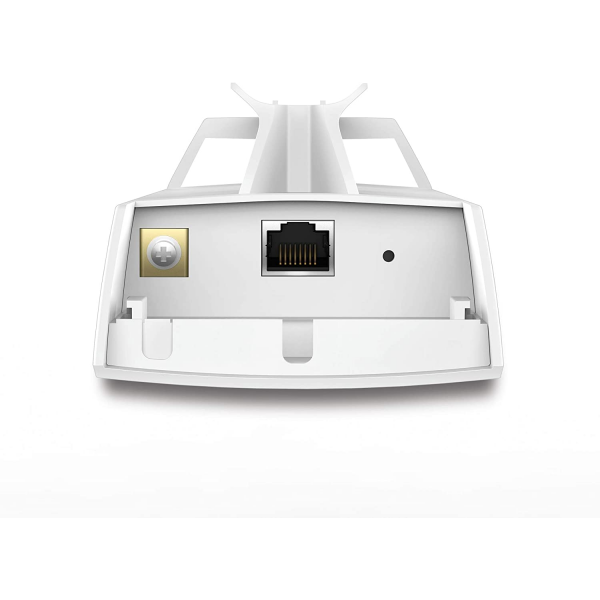

Interface
  • 1 x 10/100Mbps Shielded Ethernet Port (Passive PoE in)
  • 1 x Grounding Terminal
  • 1 x Reset Button
Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption: 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ): 8.8 x 3.1 x 2.4 in.
Antenna Type:
  • Built-in 13dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 45° (H-Plane) / 35° (E-Plane)
Protection
  • 15KV ESD Protection
  • 6KV Lightning Protection
Enclosure
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

Wireless Features
Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
Frequency: 5.15~5.85GHz
Transmission Power: 23dBm/200mw (1dBm step adjustable)

Software Features
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • 802.11a/n modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
    • Beacon Interval/RTS Threshold/Fragmentation
    • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
System-level Optimizations
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

PoE Adapter Features
Dimensions(W x D x H): 4.3 x 2.2 x 1.3 in
Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps Shielded Ethernet Port (Data)
Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.6A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency: > 80%
Certifications: CE/FCC

Others
Certification: FCC, RoHS, IPX5
Package Contents
  • Outdoor Wireless CPE
  • 24VDC Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Warranty and Returns Policy
