Klikk Computers Store Malta - Cudy GS1010P 10-port Gigabit 8xPoE+ 120W Network Switch

Model: GS1010P

SKU Code: 0036437

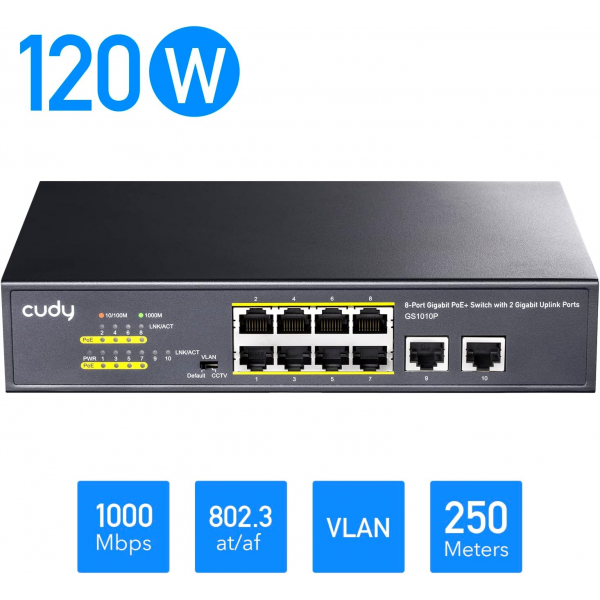

Cudy GS1010P 10-port Gigabit 8xPoE+ 120W Network Switch

A rack-mounted 10-GbE PoE switch with a 120W power supply and a silent cooling system.

Quantity

€59.90

In stock

In Stock - Birkirkara & Zejtun

Description

Overview

A rack-mounted 10-GbE PoE switch with a 120W power supply and a silent cooling system.

Features

8× GbE with 802.3at/af Mode A PoE
2× Uplink GbE
120W Power Supply
Default/VLAN/Extend Modes
Watchdog under VLAN or Extend Modes

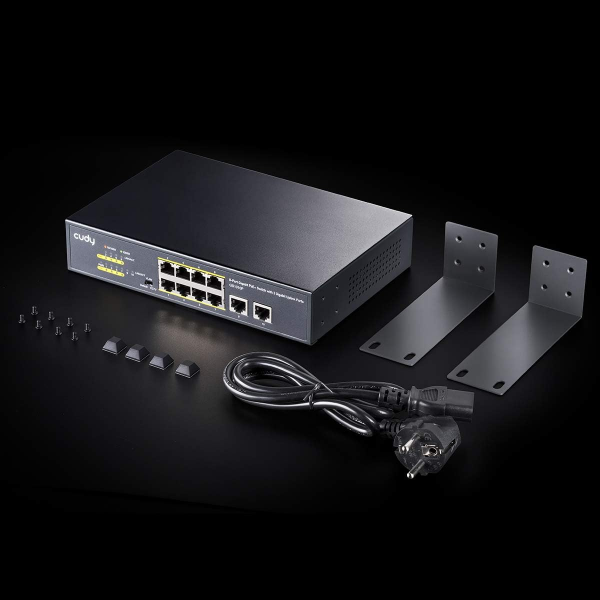

Desktop, Rack-Mount

Specifications

Technical Specifications

Gigabit RJ45 Ports: 10

Max Power on a Single PoE Port: 30W

PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.

LED:

Power
Speed/Link/ACT of Each Ethernet Port
PoE Status of Each PoE Port

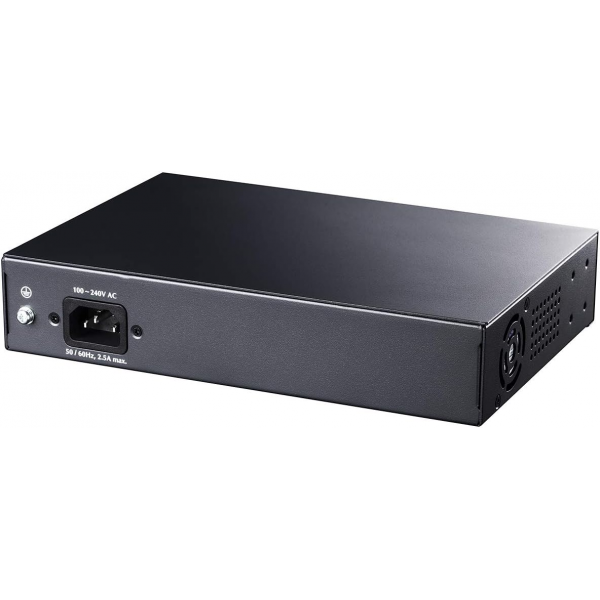

Power Input: AC Inlet

Physical Buttons: VLAN/Default/Extend DIP Switch

Performance

Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

MAC Address Table: 2048

Max Switching Capacity: 20 Gbps

Max Forwarding Rate: 14.88 Mpps

Jumbo Frame: 2 KB

Packet Buffer: 448 Kbit

Power

Power Methods: AC

AC: 100-240V~, 50/60Hz

Power Supply: 120W

Max Power Excluding PoE: 10W

Dimensions and Weight

Dimensions: 220×150×44 mm

Weight: 630g
