Asetek  |  SKU: 0040978

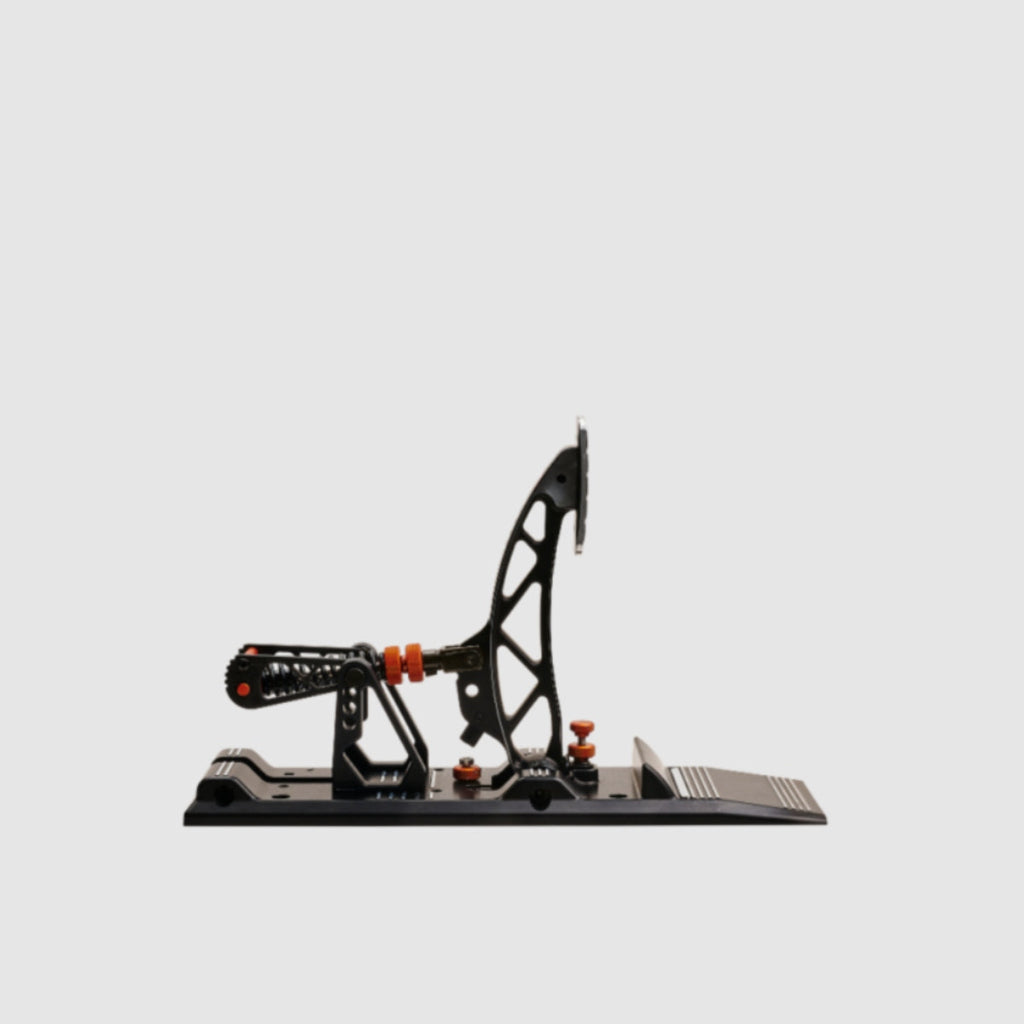

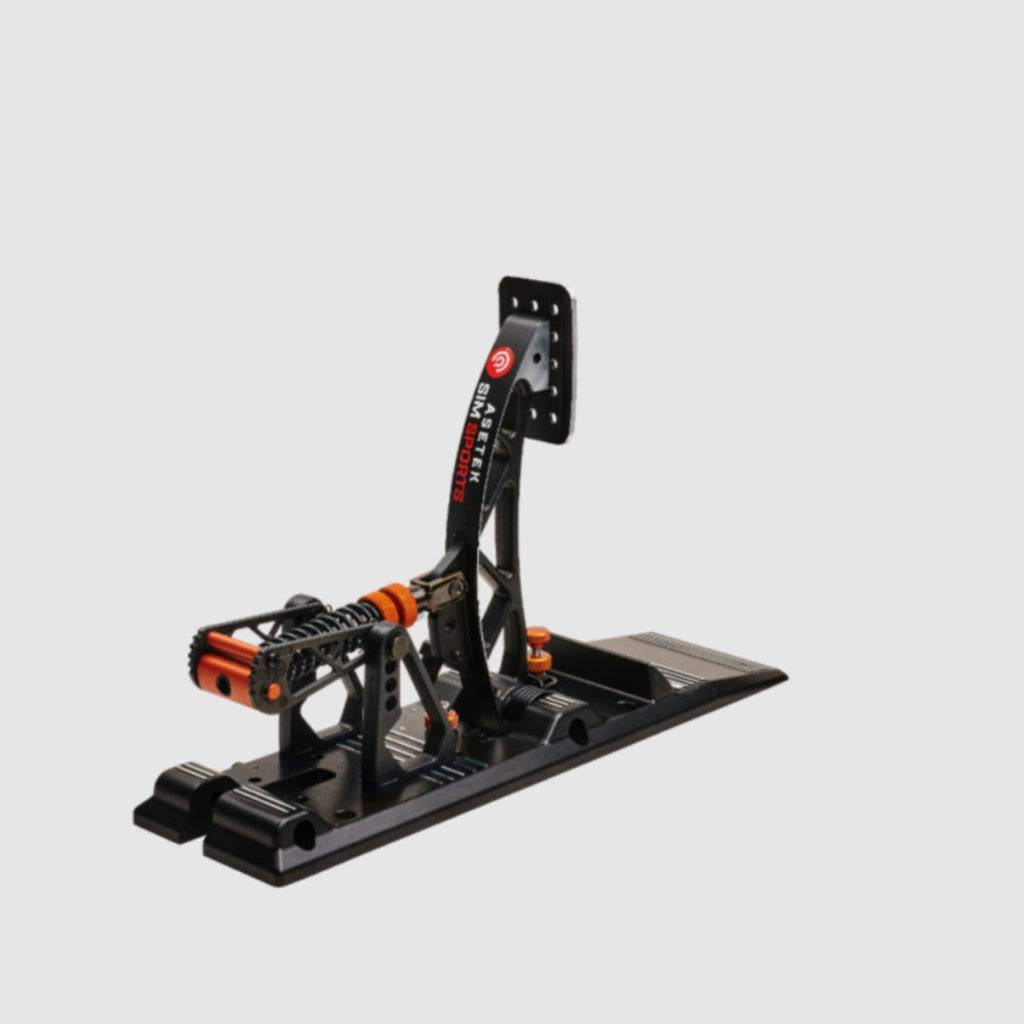

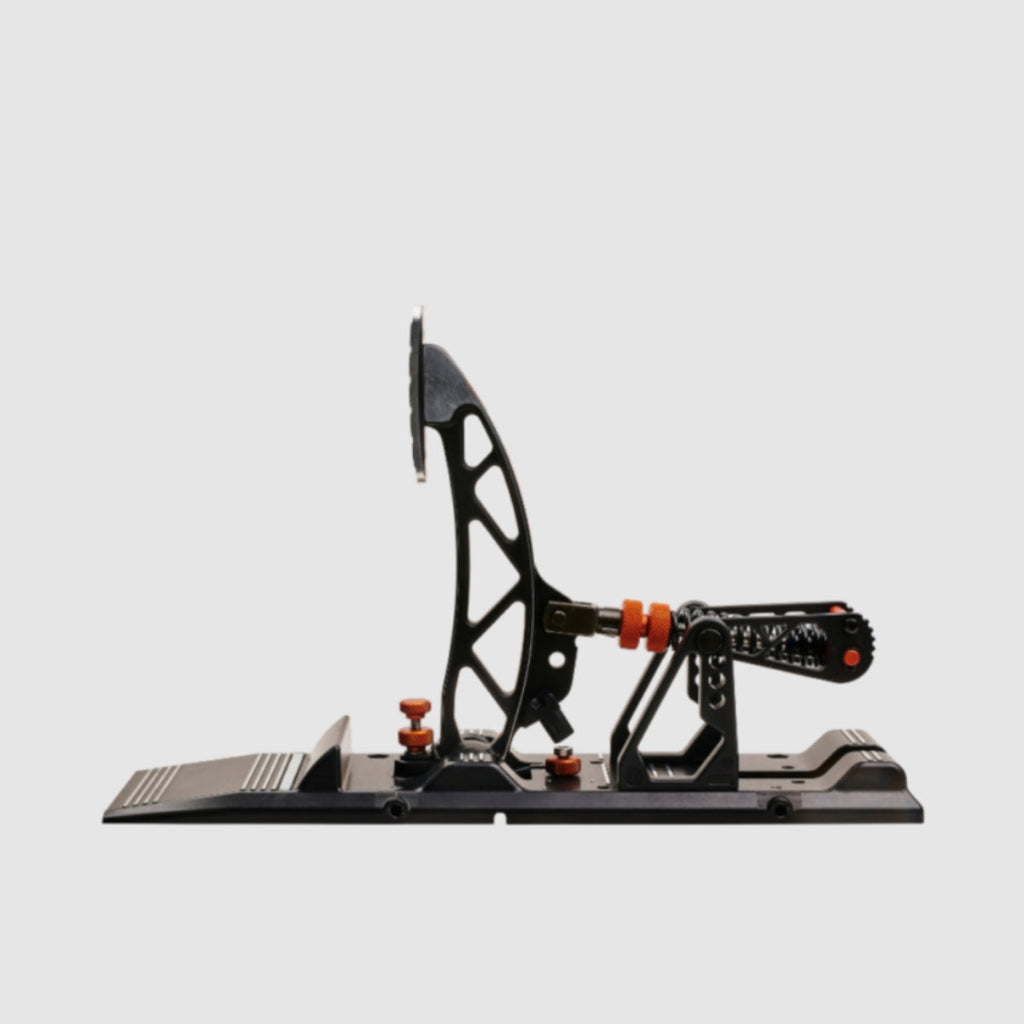

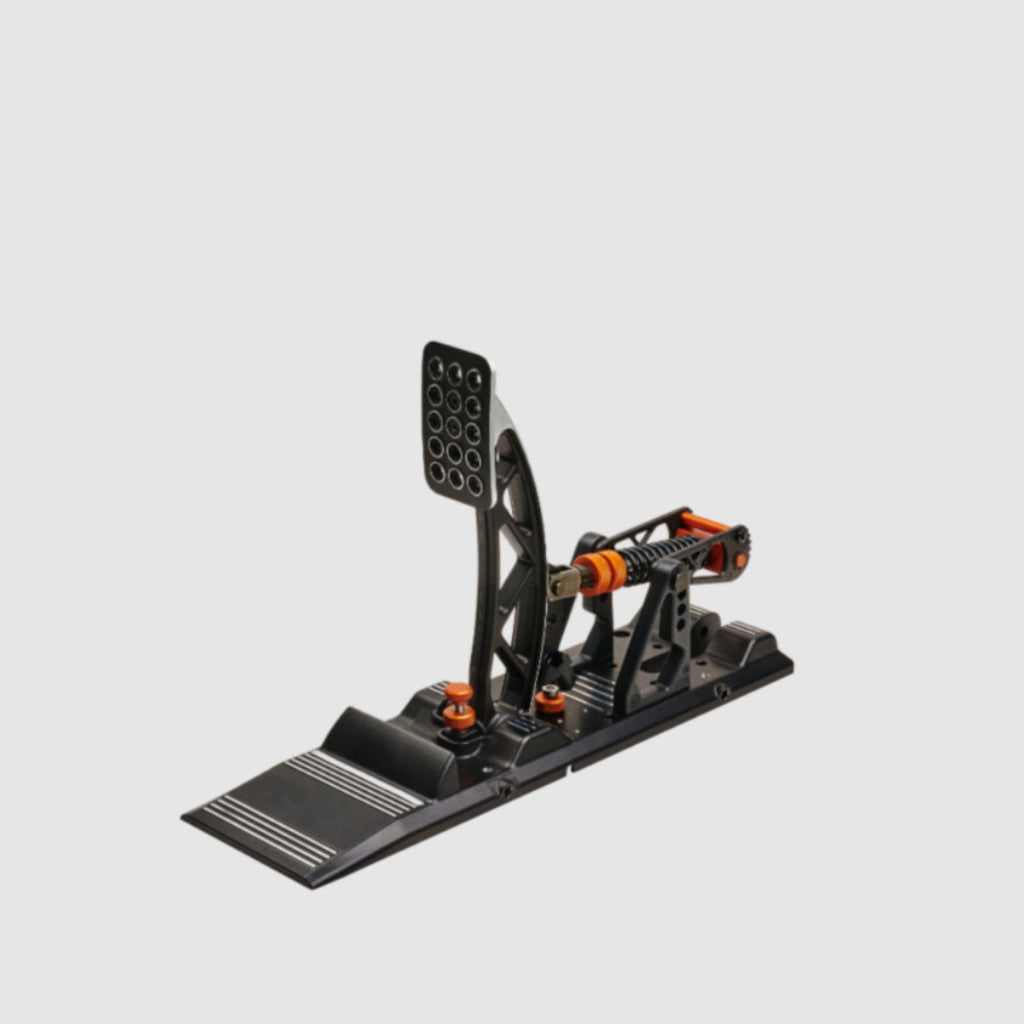

Asetek Invicta Clutch System

Regular price €259.00
Price includes VAT. Shipping calculated at checkout.
Same day delivery Free Klikk Install Klikk Guarantee

Description

Overview

The Asetek Invicta Clutch System adds an adjustable clutch pedal to a compatible Asetek Racing pedal set. Its mechanical bite point and spring-loaded rebound are designed to recreate clutch engagement in a racing simulator, giving you a defined point of engagement when shifting.

Adjustable Clutch Feel

Adjust the spring load, pedal travel, pedal stop and bite point to suit your preferred driving setup. Four mechanical pedal curve settings offer different engagement characteristics, while upper and lower deadzone adjustment lets you tailor the pedal’s response.

Contactless Position Sensing

A 16-bit magnetic Hall Clutch Position Sensor measures pedal position without mechanical contact at the sensor. Clutch calibration is available through Asetek Racing RaceHub software, allowing you to configure the input for your simulator setup.

Aluminium Construction

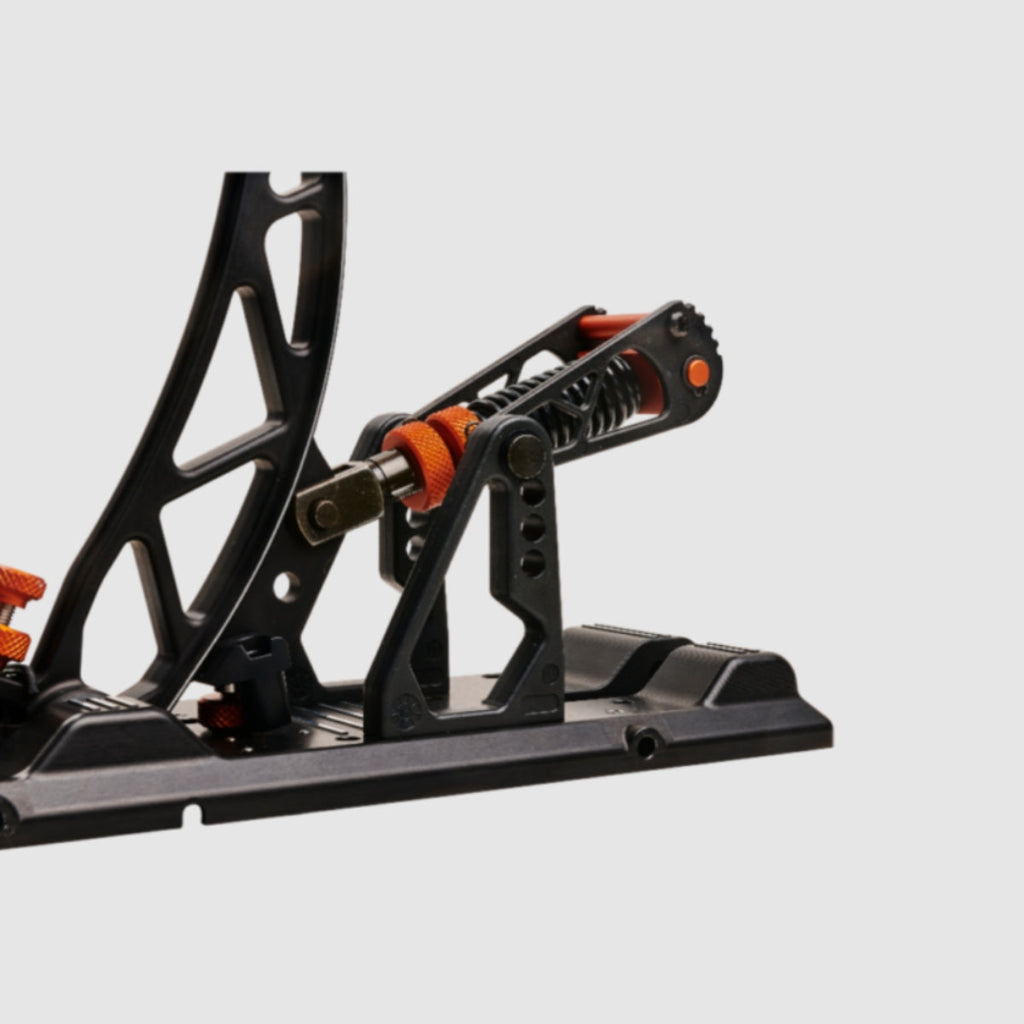

The pedal base and arm are made from die-cast aluminium. The arm incorporates ball bearings and a bronze bushing at the clevis rotation point, while an integrated heel rest supports foot positioning. Adjustable mechanical components are highlighted in orange to help identify setup controls.

Configurable Lighting

Integrated RGB LEDs can be configured through RaceHub. Adjust the lighting, dim it or switch it off to suit your cockpit.

Compatible Pedal Sets Required

This clutch is not a standalone product. The supplied compatibility list includes Asetek Invicta, Forte and La Prima Brake & Throttle pedal sets. The listed platform is PC with Windows 10 or Windows 11; confirm your pedal setup before ordering.

Dimensions And Weight

The clutch measures 406 mm deep, 115 mm wide and 271 mm high, with a stated weight of 1.6 kg.

Specifications

  • Model
    40-010-0000002
  • Colour/s
    Black
  • Material
    Metal
  • Other Details

    Compatibility

    • Requires An Asetek Racing Pedal Set; Not A Standalone Product
    • Compatible With Invicta, Forte And La Prima Brake & Throttle Pedal Sets
    • PC Support With Windows 10 And Windows 11

    Clutch Adjustment

    • Adjustable Spring Load, Travel, Pedal Stop And Bite Point
    • Adjustable Upper And Lower Deadzones
    • Four Mechanical Pedal Curve Settings

    Construction And Sensor

    • Die Cast Aluminium Pedal Base And Arm
    • 16 Bit Contactless Magnetic Hall Clutch Position Sensor
    • Ball Bearings And Bronze Bushing At The Clevis Rotation Point
    • Integrated Heel Rest

    Software And Lighting

    • Clutch Calibration Through Asetek Racing RaceHub
    • Configurable RGB LEDs With Dimming And Off Options

    Dimensions And Weight

    • Depth: 406 mm
    • Width: 115 mm
    • Height: 271 mm
    • Weight: 1.6 kg
