MikroTik  |  SKU: 0041716

Mikrotik CCR2116-12G-4S+ Cloud Core Router 16GB 13xGb 4xSFP+

Regular price €999.00
Price includes VAT. Shipping calculated at checkout.
Same day delivery Free Klikk Install Klikk Guarantee

Description

Overview

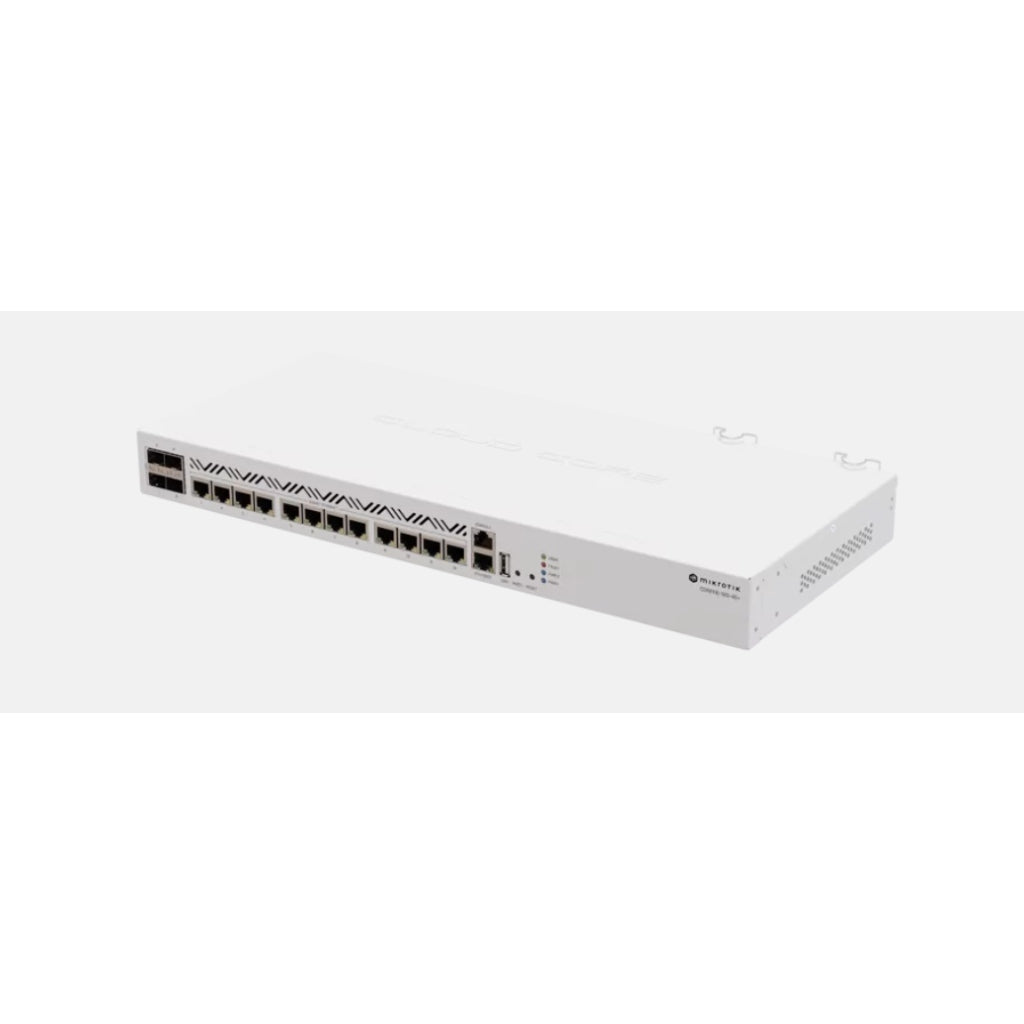

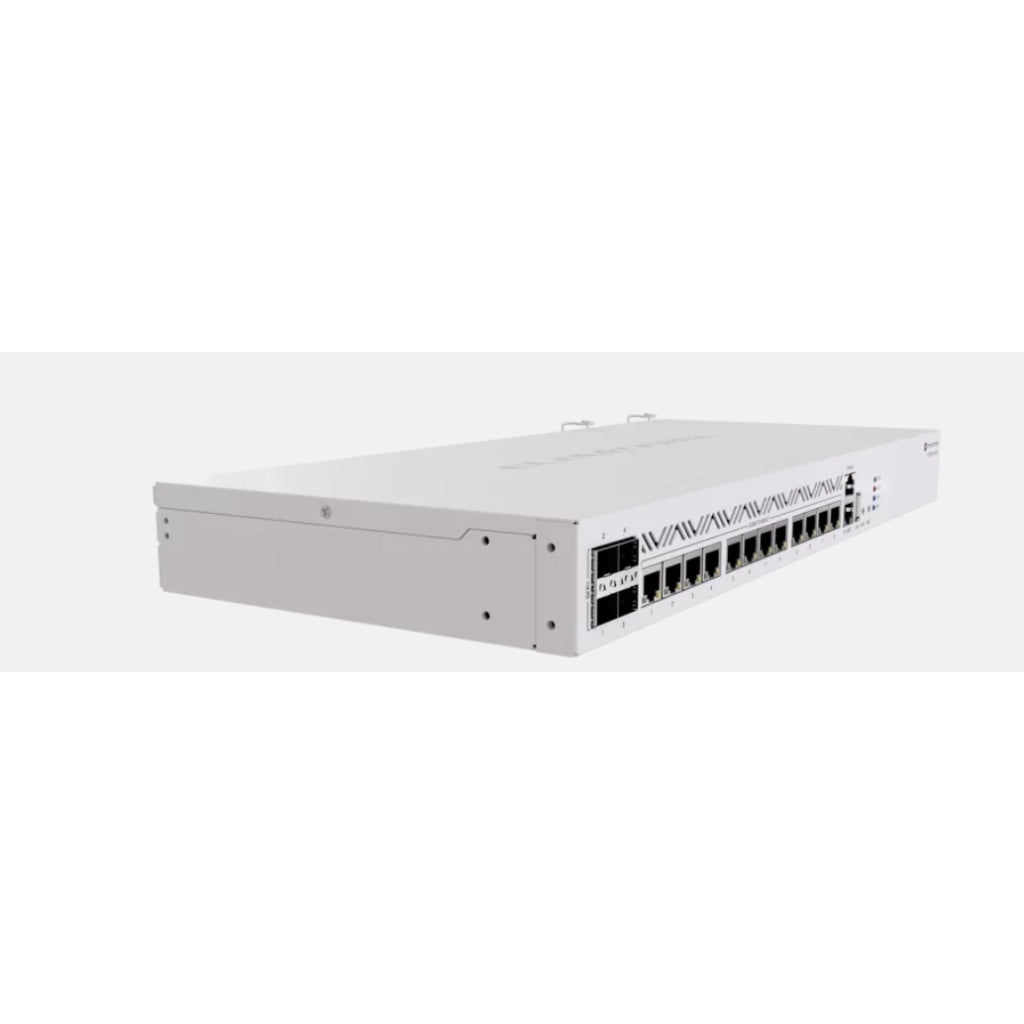

The MikroTik CCR2116-12G-4S+ combines a 16-core ARM processor with 16 GB of RAM, 13 Gigabit Ethernet ports and four 10 Gbps SFP+ ports. Running RouterOS v7 with a Level 6 licence, it provides a platform for demanding wired networks, dynamic routing and detailed traffic management.

Processing For Complex Networks

The AL73400 processor runs at 2000 MHz across 16 cores. It supports deployments involving BGP routing, firewall rules and quality-of-service configuration, while Layer 3 Hardware Offloading allows supported routing operations to use the switch hardware.

Gigabit Access And 10G Connectivity

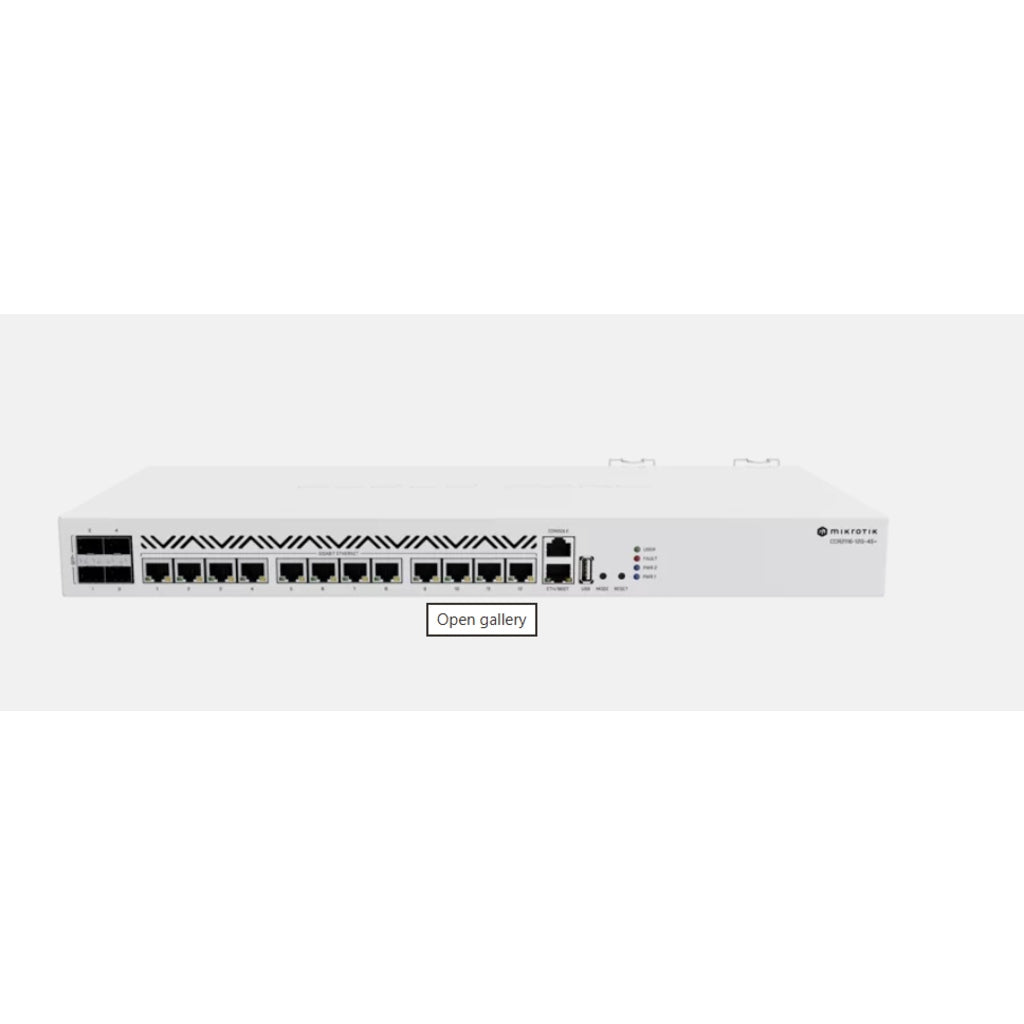

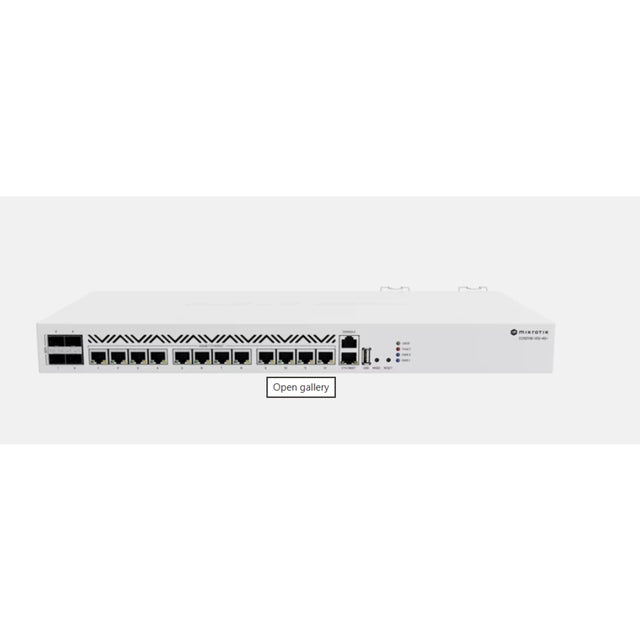

Twelve Gigabit Ethernet ports connect through the switch chip, with a separate Gigabit port connected directly to the CPU for management. Four SFP+ ports provide 10 Gbps connections for compatible uplinks and optical modules.

Management And Expansion

An RJ45 serial console provides a dedicated management connection, while an M.2 PCIe slot offers an expansion option. Onboard NAND storage holds the operating system, and temperature and voltage monitoring help you keep track of device conditions.

Power Redundancy And Installation

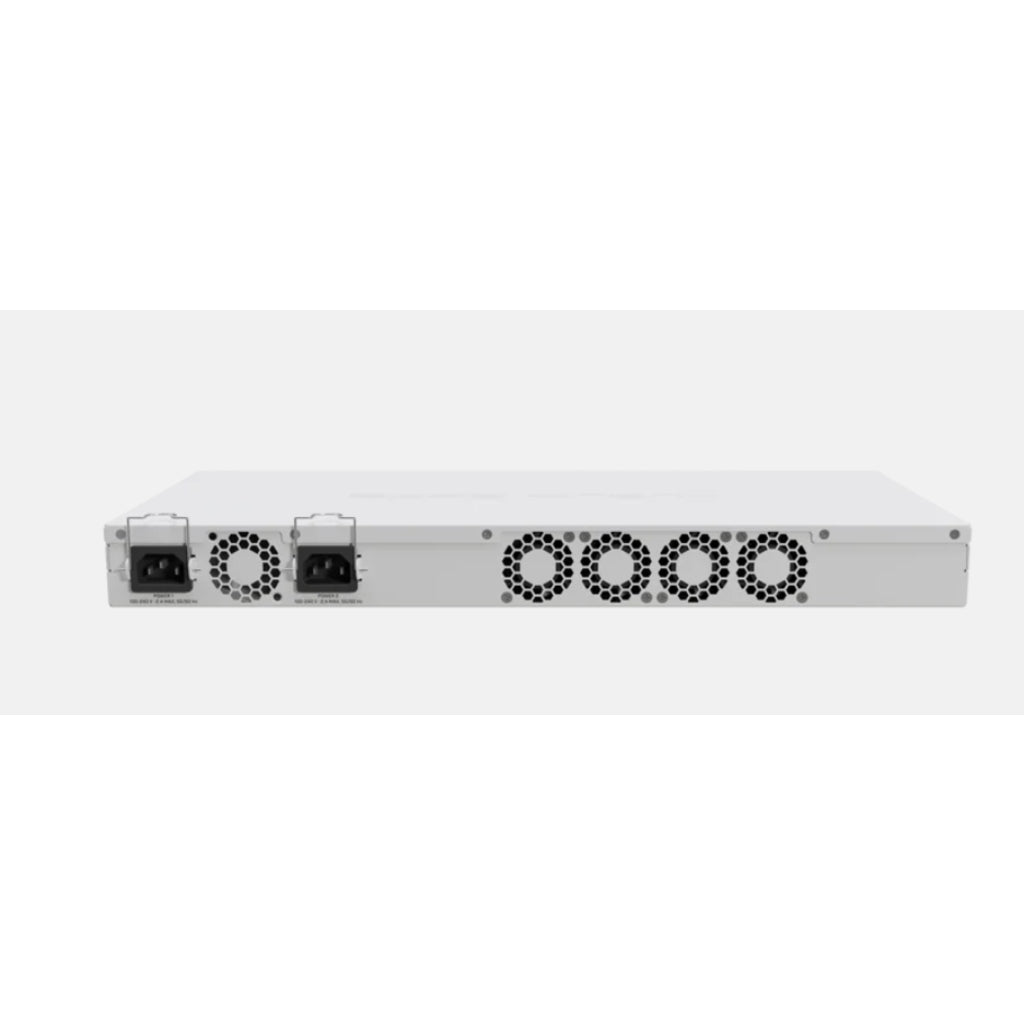

Dual redundant power supplies and two AC inputs provide power redundancy for the installation. Four fans provide active cooling. The router supports rack mounting or desktop placement and should be installed in a dry, ventilated indoor location.

Specifications

  • Bridge/Router advanced features
    QoS
  • Colour/s
    Silver
  • Ethernet LAN interface type
    Gigabit
    SFP+
  • Mounting type
    Rack Mount
    Desktop
  • Power source
    AC-Powered
  • Other Details

    Processing And Memory

    • AL73400 ARM 64 Bit Processor
    • 16 Cores And 16 Threads
    • CPU Frequency: 2000 MHz
    • 16 GB RAM
    • 128 MB NAND Storage
    • RouterOS v7 With Level 6 Licence

    Connectivity And Expansion

    • 13 Ethernet Ports Supporting 10/100/1000 Mbps
    • Four 10 Gbps SFP+ Ports
    • One Ethernet Port Connected Directly To The CPU For Management
    • RJ45 Serial Console Port
    • One M.2 PCIe Slot
    • 98DX3255 Switch Chip

    Power And Cooling

    • Dual Redundant Power Supply
    • Two AC Inputs And Two PSU Slots
    • AC Input Range: 100 To 240 V
    • Input Frequency: 47 To 63 Hz
    • Maximum Power Consumption: 83 W
    • Maximum Power Consumption Without Attachments: 60 W
    • Four Cooling Fans

    Physical And Monitoring

    • Dimensions: 443 × 199 × 44 mm
    • Tested Ambient Temperature: −20 °C To 60 °C
    • CPU Temperature, PCB Temperature And Voltage Monitoring
    • Mode Button
