QUBICSYSTEM  |  SKU: 0041001

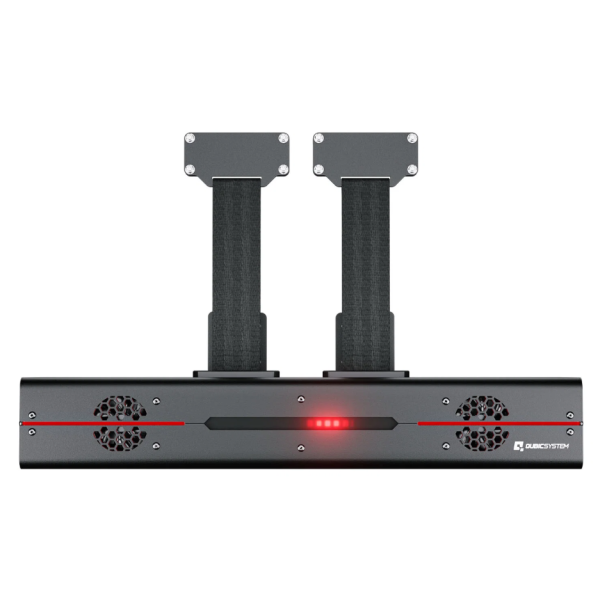

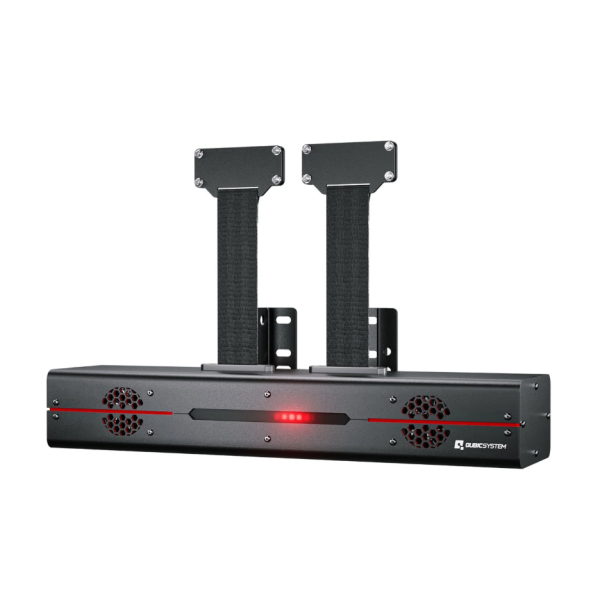

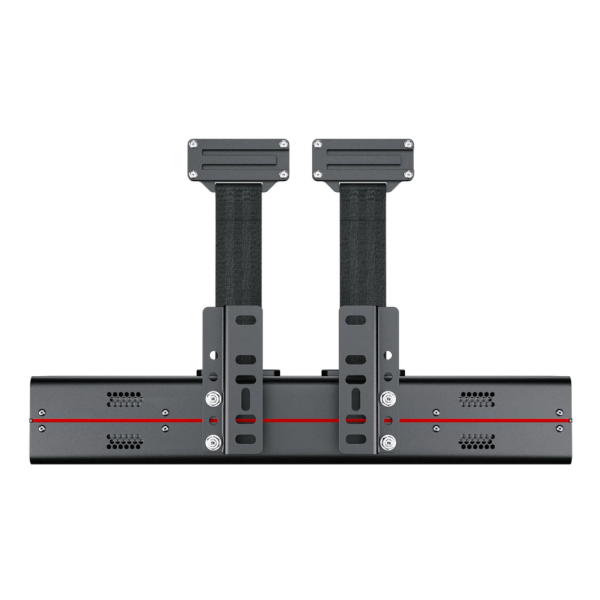

Qubic System QS-BT1 Direct Drive Seat Belt Tensioner

Regular price €1,799.00
Price includes VAT. Shipping calculated at checkout.
Same day delivery Free Klikk Install Klikk Guarantee

Description

Sim Racing Force Feedback

The Qubic System QS-BT1 is a dual channel, direct drive seat belt tensioner designed to translate simulator telemetry into force through a racing harness. Each channel is rated to provide up to 200 N of pulling force. Feel braking, lateral acceleration, cornering, wheel lock, wheel slip, traction loss and gear changes alongside feedback from a direct drive wheel.

Effects For Racing And Flight

When supported by the game, the QS-BT1 can reproduce engine vibration, rev limiter, road surface and rumble strip cues. It can also be used in flight simulation for positive and negative G, lateral acceleration and deceleration effects. Available effects depend on the game and its telemetry support.

Works With A Compatible Simulator

Connect by USB to a Windows PC. The system can operate independently or work alongside compatible Motion Systems powered QS, PS and HS motion platforms. A self testing Motion Lock system works with supported QS setups, while product information also lists software watchdogs as an additional safeguard.

Plan The Harness Fit

Choose a seat and harness with shoulder slots that suit your body. Manufacturer guidance recommends positioning the slots around shoulder height and clear of the neck; poor alignment can cause discomfort or injury. Follow the harness and simulator installation guidance before using force feedback.

Customise Your Cockpit

Multifunctional RGB lighting adds a customisable visual element to the simulator setup. The QS-BT1 uses 115/230 V AC power; confirm the unit specific electrical requirements before installation.

Specifications

  • Model
    QS-BT1
  • Colour/s
    Grey
  • Other Details

    Physical Specifications

    • Dimensions: 561 × 99 × 138 mm
    • Main Device Weight: 12 kg
    • Maximum USB Cable Length: 3 m
    • Maximum Motion Lock Cable Length: 3 m

    Operating Conditions

    • Storage Temperature Range: +5 °C To +40 °C
    • Full Performance Temperature Range: +5 °C To +35 °C
    • Protection Class: 1
