Shelly  |  SKU: 0041998
Sale

Shelly Pro 3EM 120A v2

Sale price €139.90 Regular price €155.90
Price includes VAT. Shipping calculated at checkout.
Same day delivery Free Klikk Install Klikk Guarantee

Description

Overview

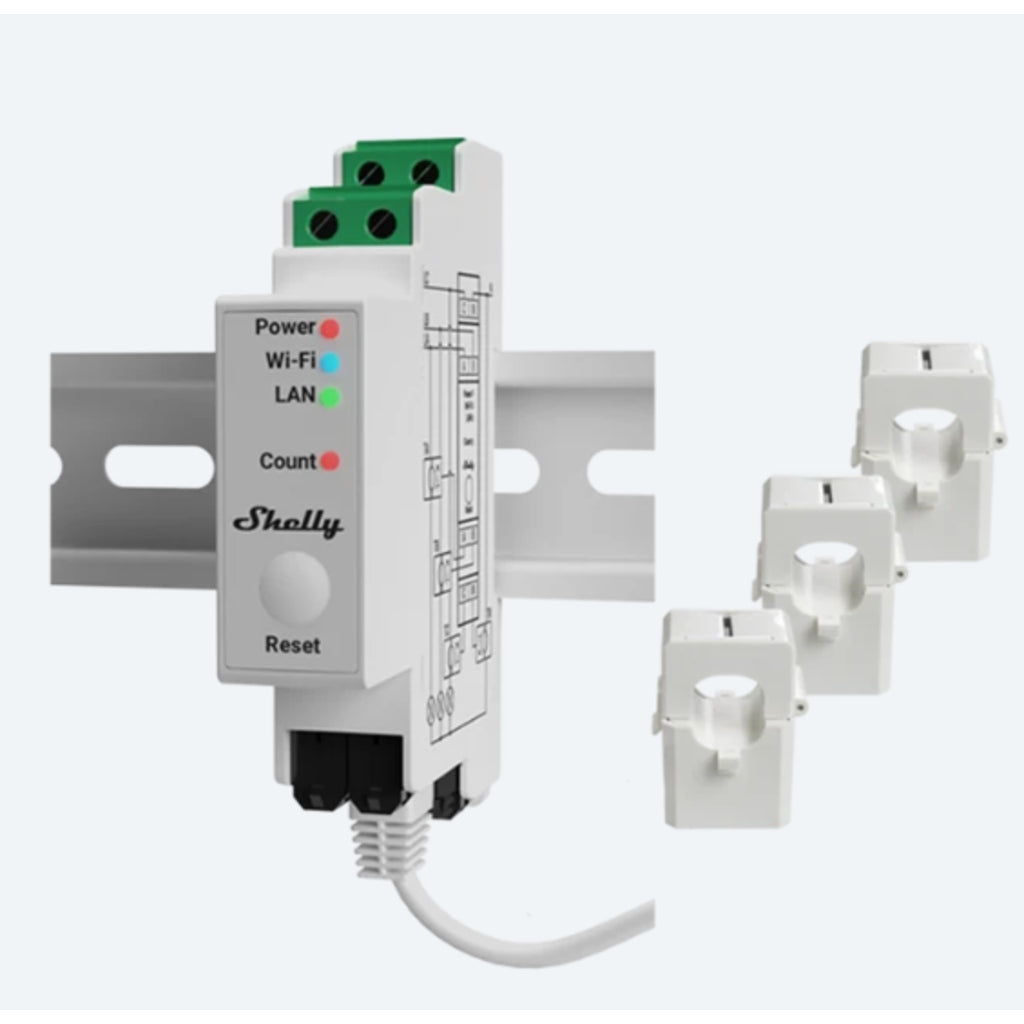

The Shelly Pro 3EM 120A v2 is a DIN rail energy meter for single-phase or three-phase installations. Track electricity consumption and generation with real-time readings, local data storage and network connectivity, helping you understand how circuits and equipment use energy.

Detailed Energy Monitoring

Monitor voltage, current, active and apparent power, accumulated energy and power factor per phase. Current measurement supports up to 120 A per phase and the neutral, while four-quadrant measurement supports photovoltaic monitoring applications. The product information specifies Class B active-energy accuracy based on manufacturer testing.

Local Records And Export

At least 45 days of measurements are stored locally at one-minute resolution for later retrieval. A real-time clock maintains record timestamps during connection interruptions. Recorded data can be exported as CSV for PQ values or as JSON through RPC.

Flexible Connectivity

Ethernet, 2.4 GHz Wi-Fi and Bluetooth provide connection options for setup and integration. Use the embedded web interface to view readings and adjust settings, or integrate with compatible automation systems through MQTT, HTTP and WebSocket. The product information lists Matter support as requiring an update to compatible firmware.

Automation And Contactor Control

Scripting and webhooks support tailored automation. There is no built-in relay: switching an external contactor requires a separate compatible Shelly add-on. The meter's 120 A measurement capability is not a direct load-switching rating.

Compact DIN Rail Installation

The plastic housing measures 94 × 19 × 69 mm and operates from a 100–260 V AC, 50/60 Hz supply. Installation and electrical protection must follow the manufacturer's safety instructions and should be handled by a qualified electrician.

Specifications

  • Model
    3800238073862
  • Colour/s
    White
  • Other Details

    Metering

    • Single Phase Or Three Phase Installation
    • Current Measurement: 0–120 A Per Phase And Neutral
    • Four Quadrant Measurement; Photovoltaic Ready
    • Active And Apparent Power And Energy, Power Factor, Fundamental Active And Reactive Energy
    • Voltage Accuracy: ±1%
    • Current Accuracy: ±1% At 2–120 A, ±2% At 1–2 A, ±5% Below 1 A
    • Calibration Minimum Load: 500 W Per Channel
    • No Load Threshold: 30 VA Per Channel

    Data And Automation

    • Local Storage: At Least 45 Days At One Minute Resolution
    • CSV Export For Recorded PQ Values; JSON Export Through RPC
    • Real Time Clock And Embedded Web Interface
    • Scripting, MQTT, HTTP And WebSocket Support
    • Contactor Control Requires A Separate Compatible Add On; No Built In Relay

    Connectivity

    • Ethernet With RJ45 Port
    • 2.4 GHz Wi Fi, IEEE 802.11 b/g/n
    • Bluetooth 4.2

    Electrical And Installation

    • Supply: 100–260 V AC, 50/60 Hz
    • Power Consumption: Below 3 W
    • DIN Rail Mounting; Plastic Housing
    • Dimensions: 94 × 19 × 69 mm, ±0.5 mm
    • Weight: 62 g, ±1 g
    • Ambient Temperature: −20 °C To 40 °C
    • Humidity: 30–70% RH
    • Maximum Altitude: 2,000 m
