Uniarch  |  SKU: 0040754

Uniarch 6-channel 1U NVR

Regular price €59.00
Price includes VAT. Shipping calculated at checkout.
Same day delivery Free Klikk Install Klikk Guarantee

Description

Features

Bring six IP camera channels together with this Uniarch network video recorder. With support for UNIVIEW and ONVIF-compatible cameras, recording resolutions up to 6 MP and local and remote access options, it provides a central point for managing your surveillance setup.

Recording And Display Options

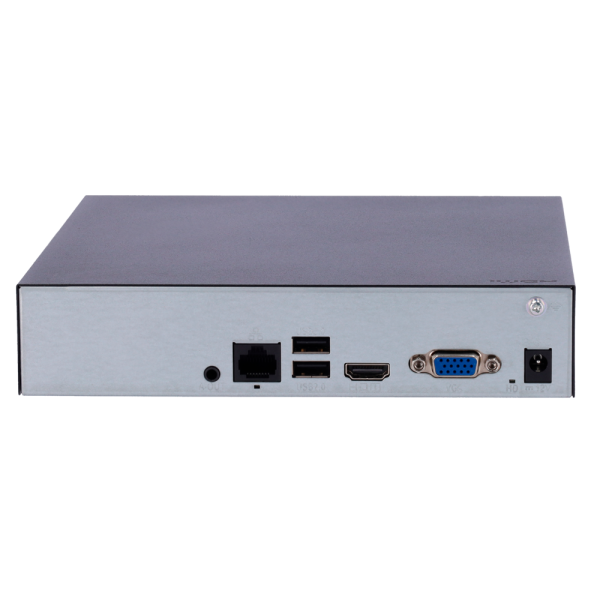

The recorder supports 64 Mbps downstream and 48 Mbps upstream bandwidth, with Ultra H.265, H.265 and H.264 video compression. Full HD HDMI and VGA outputs let you connect a compatible display, while an RCA audio output provides an audio connection.

Storage And Backup

Install one 3.5-inch SATA hard drive with a capacity of up to 6 TB for recording storage. The hard drive is not included and must be purchased separately. Two USB 2.0 ports support backup to compatible external USB storage.

Camera Based Detection Functions

Supported functions include motion detection, human body detection and video loss events. Area intrusion, line crossing, area entry, area exit and audio detection require cameras with the corresponding features. Automatic tracking configuration requires a compatible PTZ camera, while alarm input events require a camera with alarm inputs.

Smart Intrusion Prevention Alerts

SIP alarm reception is supported on four channels when connected to SIP-enabled cameras. This support receives alarm notifications but does not include receipt of alarm images.

Network And Remote Access

An RJ45 Ethernet port connects the recorder to your network. Access options include a web browser, smartphone app and PC software. The compact recorder measures 42 × 190 × 195 mm and weighs 1 kg.

Specifications

  • Model
    UNVRNVR-106S3
  • Colour/s
    Black
  • Power source
    12 V DC
  • Other Details

    Camera And Recording Support

    • IP Camera Channels: 6
    • Compatible Cameras: UNIVIEW, ONVIF
    • Maximum Recording Resolution: 6 MP
    • Bandwidth: 64 Mbps Downstream, 48 Mbps Upstream
    • Video Compression: Ultra H.265, H.265, H.264

    Video And Audio Outputs

    • One Full HD HDMI Output
    • One VGA Output
    • One RCA Audio Output
    • Display Resolutions: 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 Pixels

    Storage And Connections

    • Supports One 3.5 Inch SATA HDD Up To 6 TB, Purchased Separately
    • Two USB 2.0 Ports
    • One RJ45 Ethernet Port
    • External Backup To USB Storage
    • Remote Access: Web Browser, Smartphone App And PC Software

    Detection Support

    • Motion Detection, Human Body Detection And Video Loss Events
    • Alarm Input Events Require A Camera With Alarm Inputs
    • Area Intrusion, Line Crossing, Area Entry, Area Exit And Audio Detection Require Compatible Camera Functions
    • Automatic Tracking Configuration Requires A Compatible PTZ Camera
    • SIP Alarm Reception On Four Channels Requires SIP Enabled Cameras
    • SIP Alarm Images Are Not Received

    Physical And Operating Specifications

    • Power Consumption Without HDD: Less Than 6 W
    • Operating Temperature: −10°C To +55°C
    • Dimensions (H × W × D): 42 × 190 × 195 mm
    • Weight: 1 kg
