Model: 42600

SKU Code: 0023038

Delock USB Type-C M.2 PCI-e SSD External Enclosure

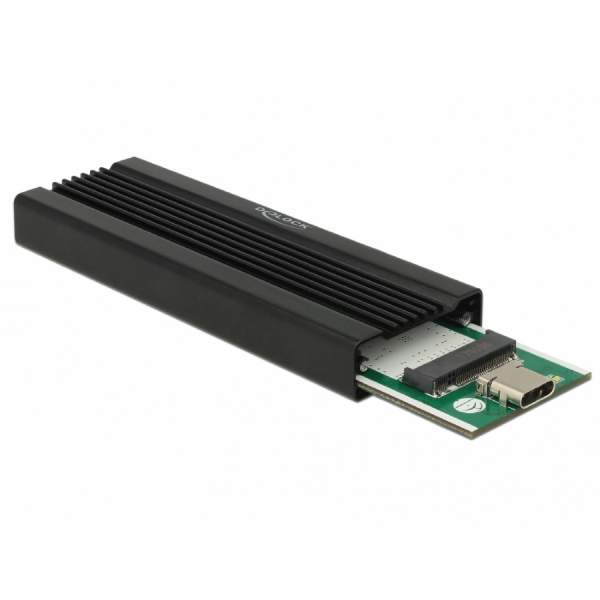

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop.

Currently Not Available

€59.00

€69.00

Offers available in Stores only

€53.10

Description

Overview

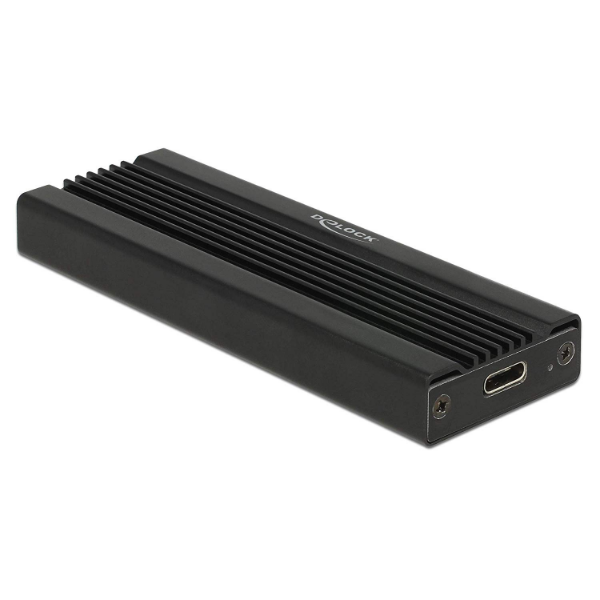

The robust metal housing with cooling fins on the top ensures an optimum temperature of the memory.

Features
Supports NVM Express (NVMe)
Bootable
Data transfer rate up to 10 Gbps
LED indicator for power and access
Hot Plug, Plug & Play

Specifications

Technical Specifications
Connectors:
  • External: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
  • Internal: 1 x 67 pin M.2 key M slot
Chipset: JMicron JMS583
Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe (NVMe)
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
Dimensions (L x W x H): ca. 102 x 34 x 12 mm

System requirements
Chrome OS
Linux Kernel 4.6 or above
Mac OS 10.13.3 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or laptop with a free USB Type-C™ port

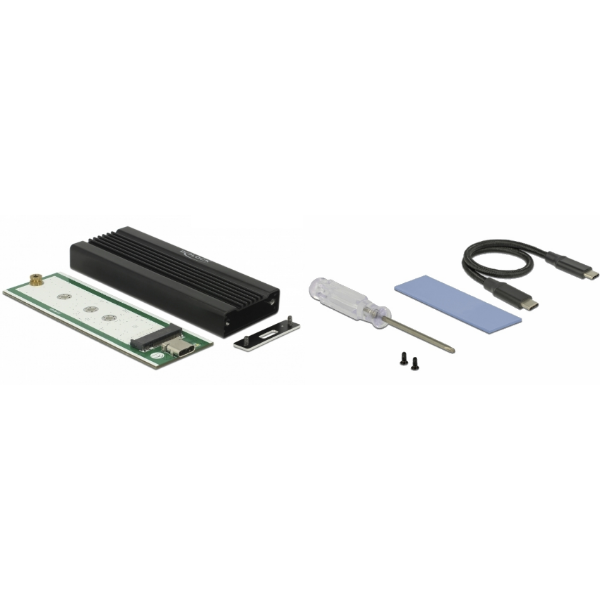

Package content
  • External enclosure M.2
  • Screwdriver
  • Mounting material
  • Cable USB-C™ male to USB-C™ male, length ca. 30 cm
  • 1 x self-adhesive thermal pad
  • User manual
