Klikk Computers Store Malta - Ubiquiti UniFi UAP U7 Pro Access Point

Model: U7-PRO

SKU Code: 0036130

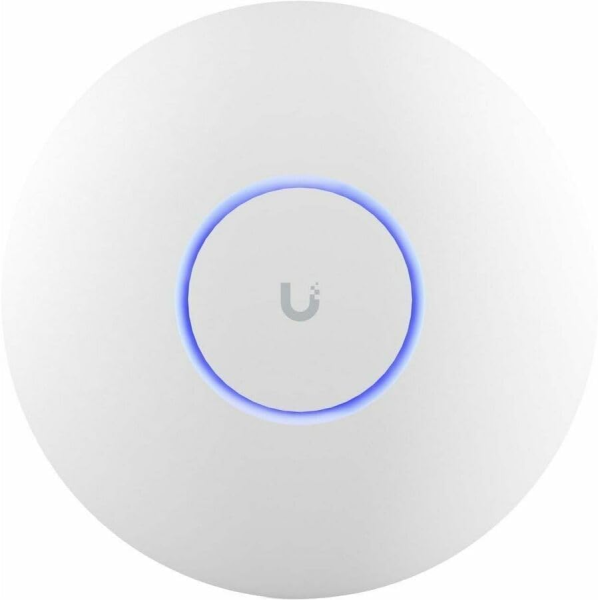

Ubiquiti UniFi UAP U7 Pro Access Point

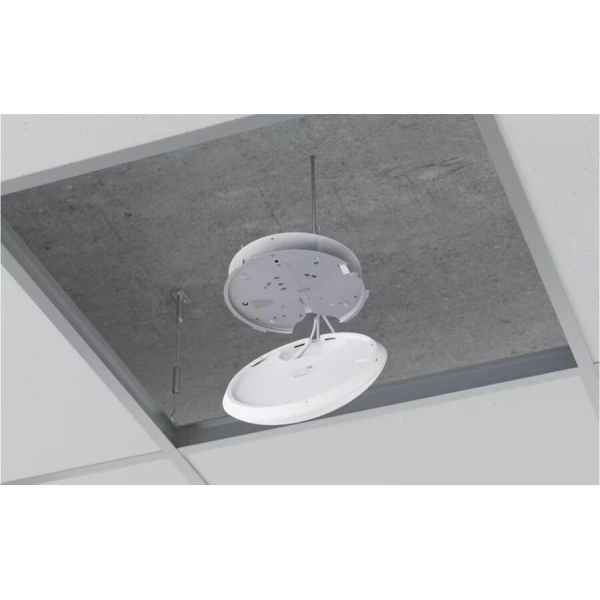

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support.

Quantity

€249.00

In stock

In Stock - Currently online only

Description

Overview

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Specifications

Mechanical

Dimensions: Ø220 x 46 mm (Ø8.1 x 1.8")

Weight: 680 g

Enclosure Material: Polycarbonate, metal

Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

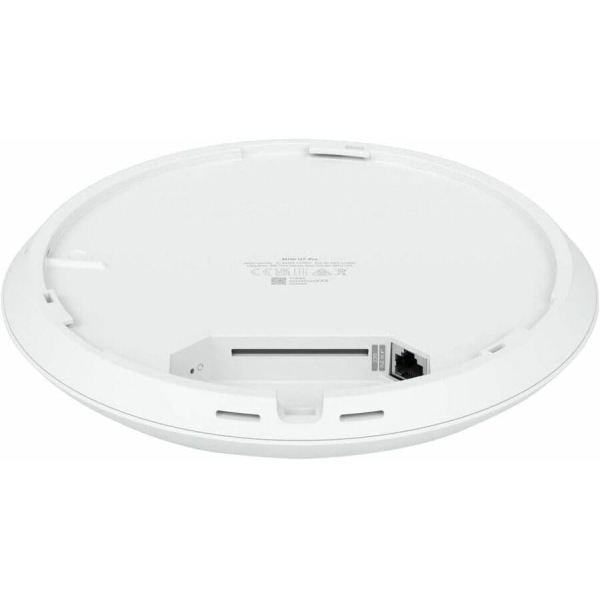

Networking interface: (1) 1/2.5 GbE RJ45 port

Management interface : Ethernet

Power method: PoE+

Supported voltage range: 44—57V DC

Max. power consumption: 21W

Max. TX power

2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: 23 dBm

MIMO

2.4 GHz: 2 x 2
5 GHz: 2 x 2
6 GHz: 2 x 2

Max. Data Rate

2.4 GHz: 688 Mbps
5 GHz: 4.3 Gbps
6 GHz: 5.7 Gbps

Antenna gain

2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.8 dBi

LEDs: White/blue

Operating temperature: -30 to 40° C

Operating humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced Radio Management: Yes

Passpoint (Hotspot 2.0): Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
